Perfectly tailored – to all your requirements

The Wravor wood band saws

Wravor horizontal band saws, due to the variety of types, can cover the most diverse requirements of all sawmill companies. From high cutting performance to large diameters, to smaller cutting capacities, the right band saw with the associated equipment options can be configured perfectly for your needs – VKM makes it possible for you!

Non-stop productivity

These saws differ from others in their massive construction through extreme robustness in use, a high degree of automation, resulting in high productivity with minimal manpower. They are upgraded with a fully automatic system with automatic settings for cutting thickness and displacement. In most cases, they are connected in the production line with loading ramp, output conveyors and multi-circuit saw blades.

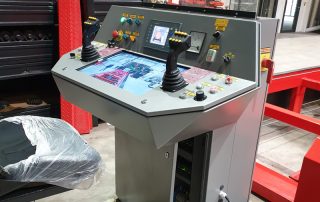

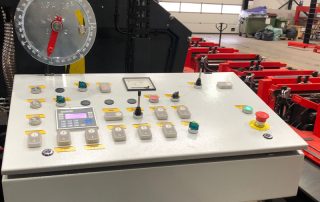

From the world’s largest band saw to weather-resistant electronics and control elements, the various Wravor band saw models offer the right solution for every challenge.

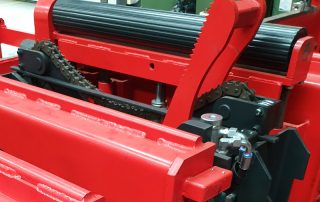

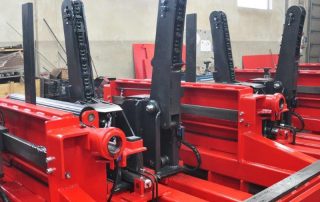

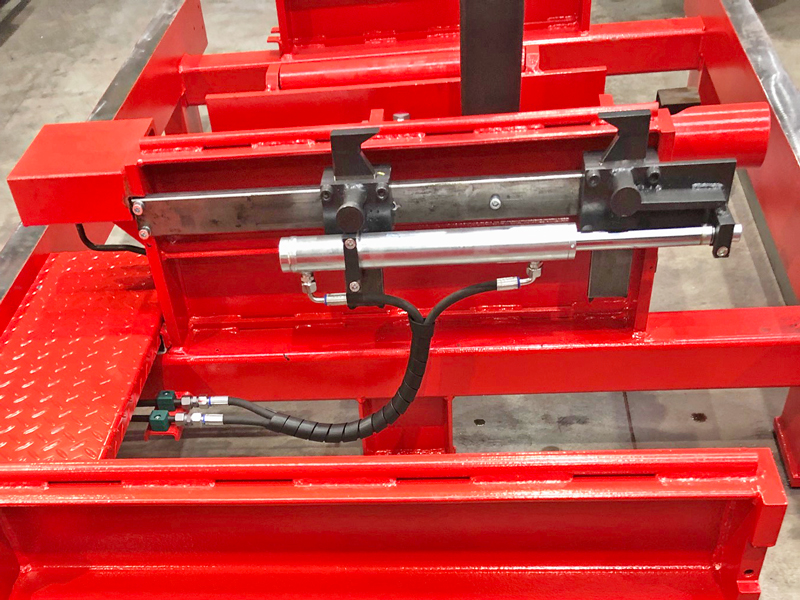

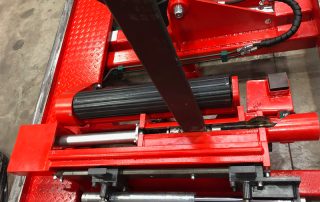

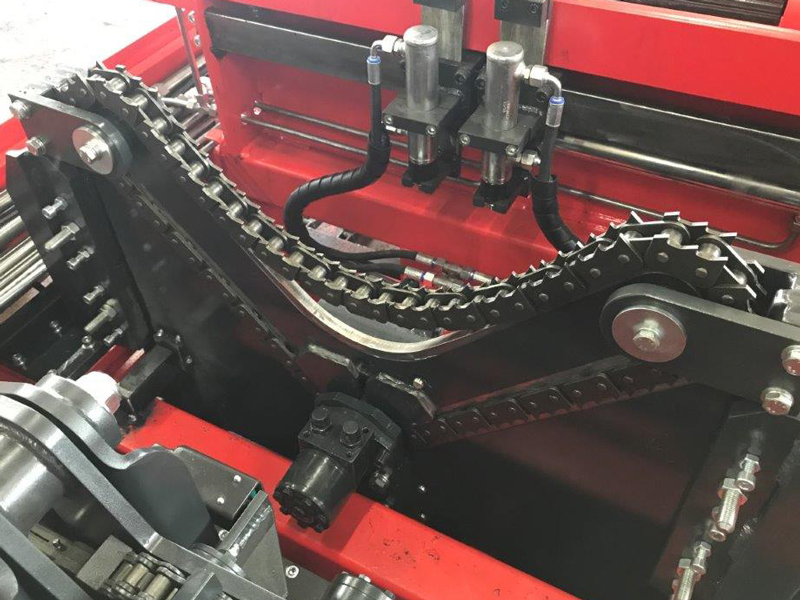

The stable and powerful construction of the model series shine with well thought-out detail solutions, different turning solutions, reinforced brackets and movable rollers in vertical and horizontal direction. All, for the fast and efficient roundwood handling.

The improved design also makes transport and assembly much easier. VKM is your partner for all questions and individual demands.

Technical data:

	WRC 1000 ACM	WRC 1050ACM	WRC 1050ACH	WRC 1150ACH	WRC 1225ACH	WRC 1250ACH	WRC 1550ACH	WRC 2000ACH

Cutting capacity up to m3/8h	15	20	30	40	43	55	65	75
Round wood diameter max.	1000	1050	1050	1150	1250	1250	1500	2000
Root width max. mm	950	1050	1050	1150	1250	1250	1500	2000
Stroke saw mm	1000	940	940	940	1100	1150	1150	1850
Standard cutting length mm	8000	6500	6500	6500	6500	6000	7000	6500
Drive motor saw kW variants	22	30	30/37/45	30/37/45	30/45	45/55	55/75	75/110
Lifting motor kW	1,5	3	4	5,5	7,5	11	11	11
Feed motor kW	0,75	1,5	1,5	2,2	3	3	4	5,5
Band saw blade width/thickness mm	PV45 110/1.1	PV45 120/1.1	PV45 120/1.1	PV45 140/1.2	PV45 140/150/1.2	PV45 160/1.3	PV45 180/1.47	PV45 180/1.47
Control	hydromechanical	hydromechanical	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
